Garmin Echomap UHD2 55cv Fish Finder
Fish finder with built-in Navionics Charts for UK waters
A fish finder chartplotter with 5in bright and vivid colour screen and built-in Navionics+ charts for UK waters. Choose from transducer options to suit the waters you fish. Excellent sonar unit for kayaks and boats alike.
Echomap UHD2 55CV + GT20 Transducer: £559.98
Echomap UHD2 55CV + GT24 Transducer: £679.98
Garmin Echomap UHD2 55cv Fish Finder with built-in Navionics+ Charts for UK waters
- More Info
- Features
- Mounting Options
- Transducer Installation
- Power Options
- Delivery

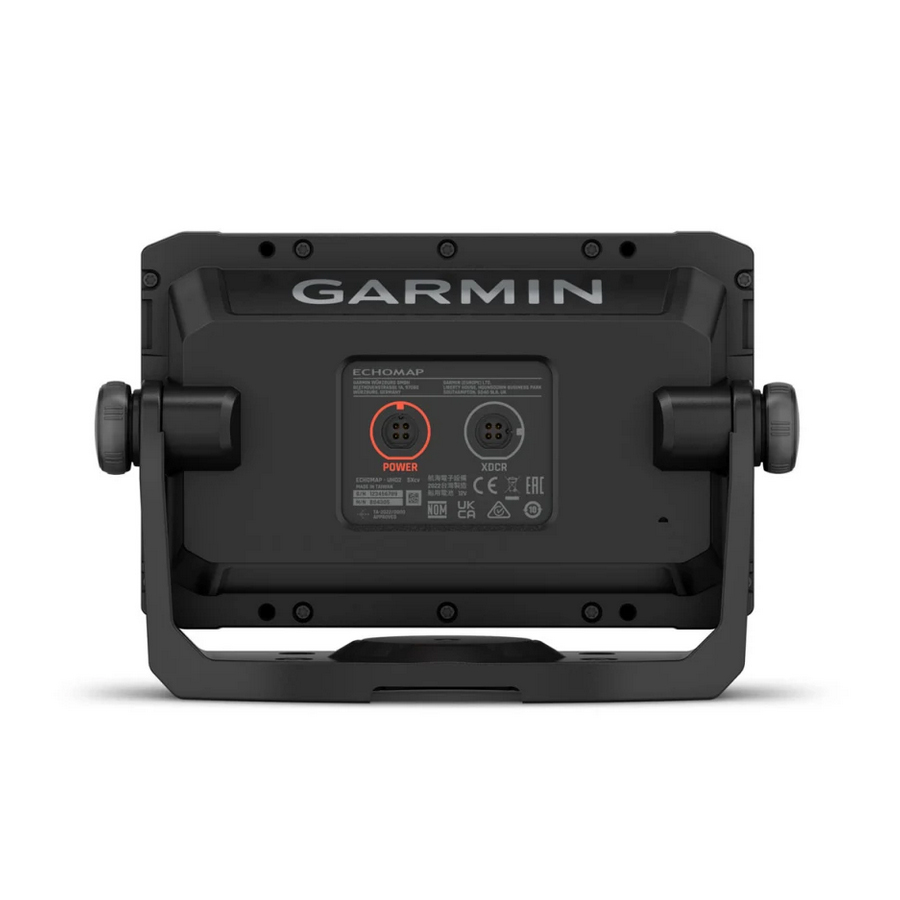

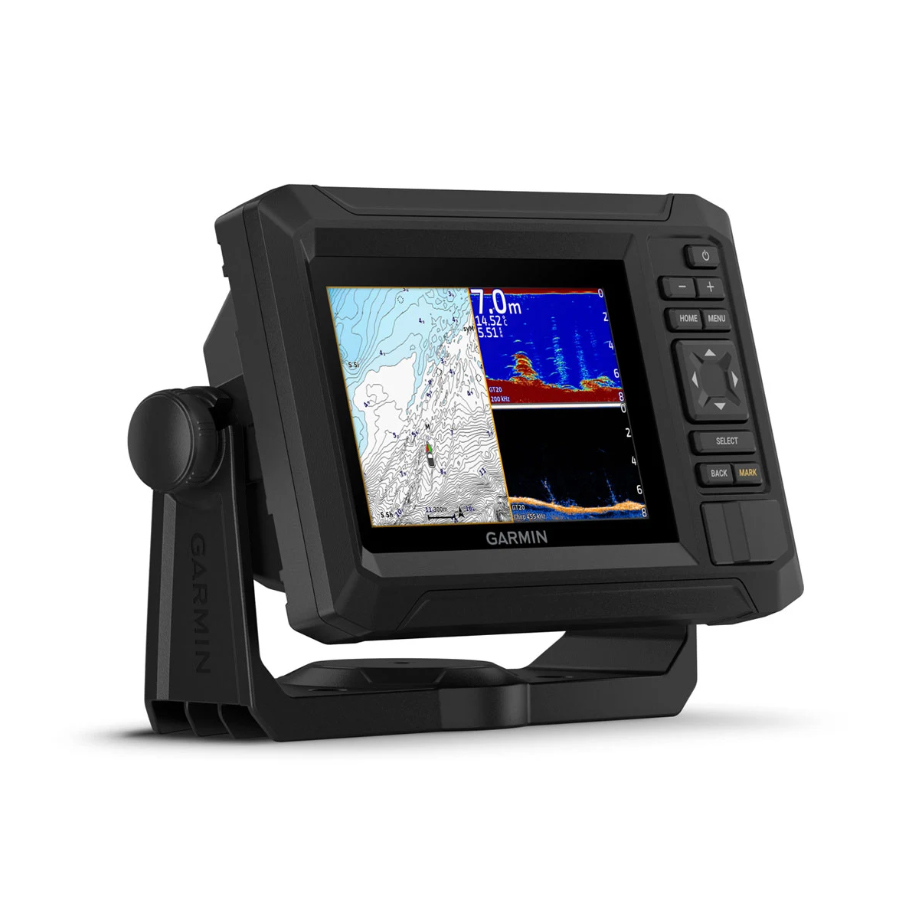

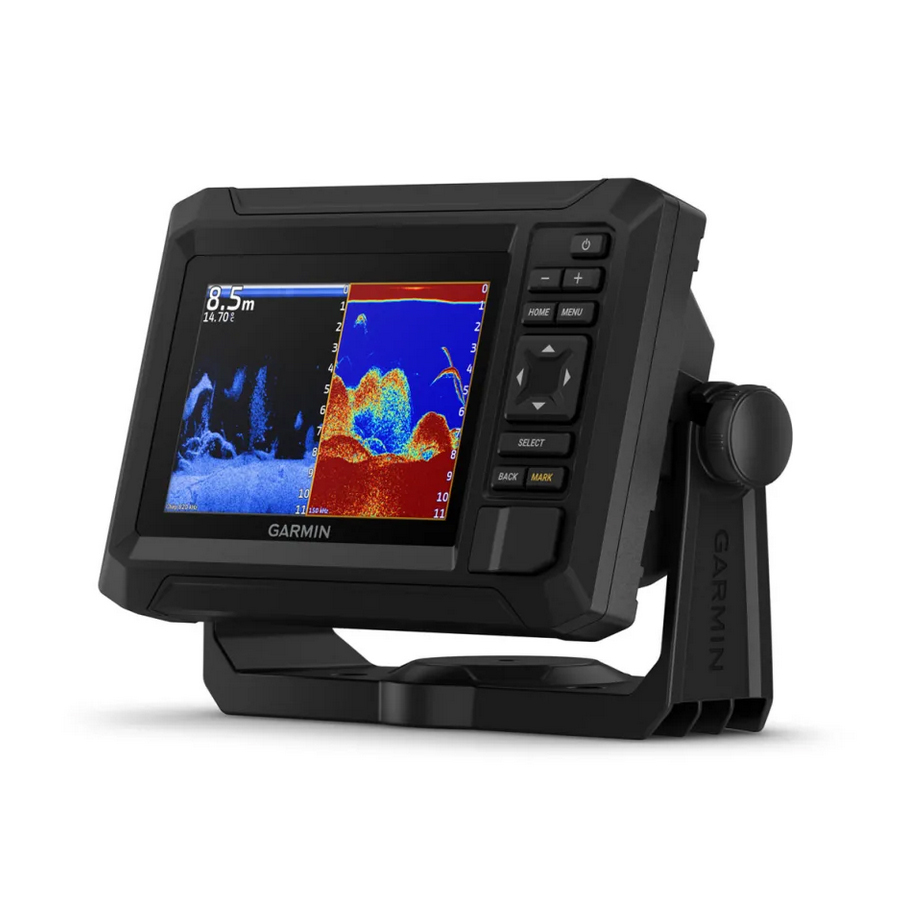

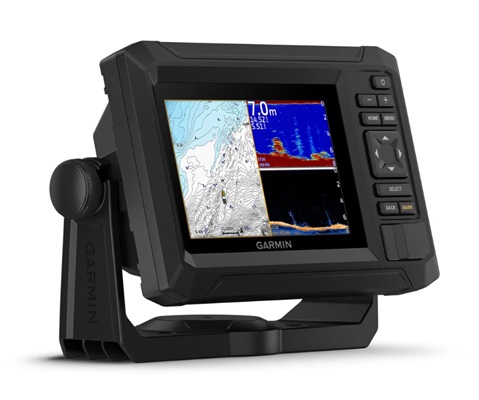

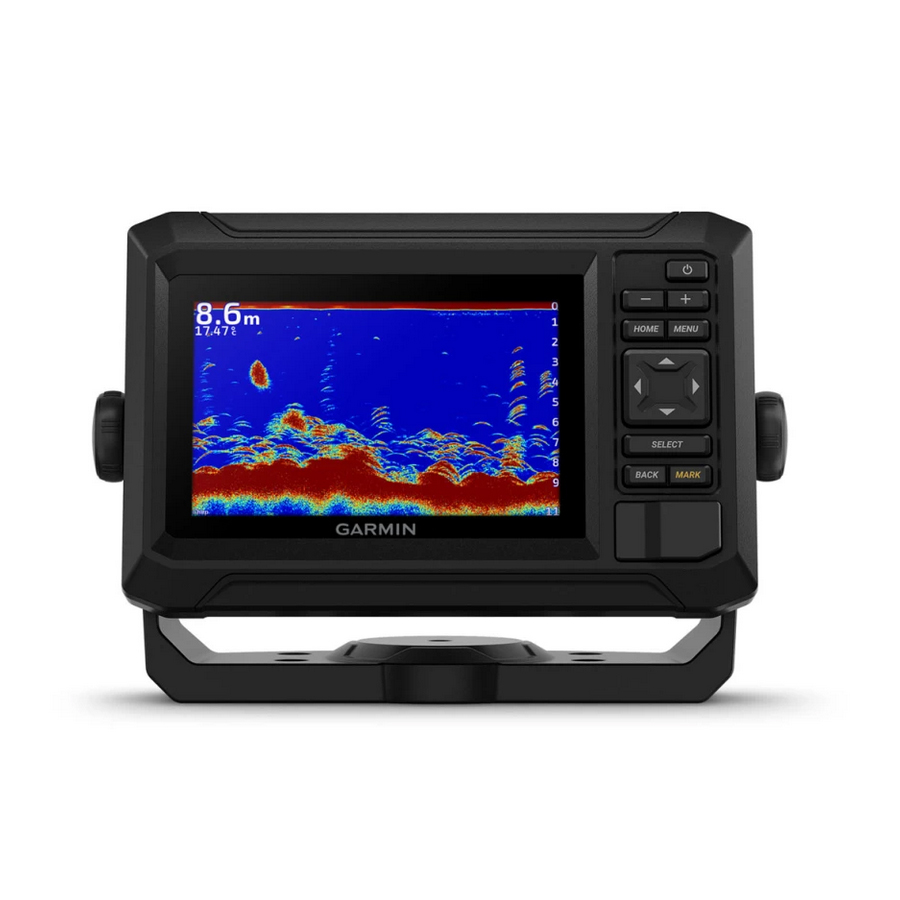

Garmin Echomap UHD2 55cv
Improve your catch rate with the Echomap UHD2 55cv from Garmin. The bright 5in screen shows a vivid high-contrast colour palette for easy viewing of sonar data displayed on the screen. Fish and structure shows up better than ever so that you can cast your lure or drop your bait exactly where you need to. Plot marks, draw tracks and route to your chosen position with in-built GPS, also providing readings of speed and heading.
In-built Garmin Navionics+ charts for UK waters provide you with detailed contour charts, allowing you to locate the reefs, pinnacles, drop-off and banks to fish over. Built-in Wifi allows you to connect with the Garmin Active Captain App where you can upgrade your charts to the Navionics Vison+ for super detailed Relief Shading charts!
The Echomap UHD2 has a IPX7 rating making it great for use on boats and kayaks alike. The Echomap UHD2 range supports a number of Garmin transducers - see below for options.
Transducer Options
Garmin GT20 Transducer
Providing traditional sonar (upto 1900ft depth) and detailed CHIRP ClearVu sonar (upto 750ft depth). Great for coastal and lake use for displaying fish arches and clear images of structure and underwater objects. Operating frequency of 77/200 kHz (traditional) and 455/800 kHz (ClearVü). Can be transom mounted or trolling motor mounted.
Garmin GT24 Transducer
Providing High-wide CHIRP traditional sonar (upto 800ft depth) and Ulta-HD ClearVu sonar (upto 200ft depth). Great for shallower coastal and lake use for displaying incredibly clear high resolution images of fish, structure and underwater objects. Operating frequency of 150-240 kHz (HW-CHIRP) and 760/880 kHz (UHD ClearVü). Can be transom mounted or trolling motor mounted.
Features
- Bright 5in keyed display
- High-contrast vivid colour palette for better viewing of targets on screen
- Preloaded Garmin Navionics+ Charts
- Optional upgrade to Garmin Navionics Vision+ charts via Active Captain App
- Transducer support for Garmin traditional and ClearVü scanning sonars
- Built-in Wi-Fi connectivity for Active Captain App
- Wireless Networking with other compatible Echomap UHD2 models
- IPX7 waterproof rating
- Micro SD card slot - accepts data cards up to 32 GB maximum size
- Typical Current Draw at 12VDC = 1A
- Max Current Draw at 12VDC = 1.5A
Whats Included In The Box?
- ECHOMAP UHD2 55cv Unit
- Power/data cable
- 8-pin to 4-pin transducer adapter cable
- Bail mount
- Flush mount
- Hardware
- Documentation
Need a visor for your fish finder? Reduce sun glare and spray build-up with a screen visor! We sell the BerleyPro Visor for the Garmin Echomap UHD2 55cv? - Click Here to find out more.
Please note this unit does not come with a battery. See the powering options tab for more details.
If you need to know what else you need to install a Fish Finder to your kayak, please refer to our Fish Finder Buyers Guide
Mounting Options - Fish Finder Headunit
RAM Fishfinder Mount - For Garmin
Marine Fishfinder Mount for Garmin Striker. Rubber 1" ball and socket technology dampens shock and vibration, as well as allowing for almost infinite adjustment and perfect viewing angles.
M4 Bolts required to attach fish finder base to Ram Mount- sold seperately
M5 Bolts required to attach Ram Mount to kayak/boat - sold seperately
Price £27.89 (RRP £30.99 - Saving £3.10)
Railblaza R-Lock Garmin Fish Finder Mount
A fully adjustable fish finder mounting platform featuring lockable friction swivel joints and a centre joint that can be positioned in increments of 15 degrees. This allows for optimal position of your fish finder screen. Will take fish finders up to 1.5kgs in weight. Simply mount onto any Railblaza StarPort base mount.
Starport base mount required - sold seperately
Price £28.01 (RRP £32.95 - Saving £4.94)
Railblaza R-Lock R Fish Finder Mount
A fully adjustable fish finder mounting platform to suit fish finders that have a U-cradle mount. Featuring lockable friction swivel joints and a centre joint that can be positioned in increments of 15 degrees. This allows for optimal position of your fish finder screen. Will take fish finders up to 1.5kgs in weight. Simply mount onto any Railblaza StarPort base mount.
Starport base mount required - sold seperately
Price £29.71 (RRP £34.95 - Saving £5.24)
Ram Mounts Universal Electronics Mount
Large mounting plate compatible with fish finders that use a U-cradle base mount. Rubber 1.5in ball and socket technology dampens shock and vibration, as well as allowing for almost infinite adjustment and perfect viewing angles.
M4 Bolts required to attach fish finder base to Ram Mount- sold seperately
M5 Bolts required to attach Ram Mount to kayak/boat - sold seperately
Price £51.29 (RRP £56.99 - Saving £5.70)
If you need any help on deciding which mounting option is best for you, please refer to our Fish Finder Buyers Guide
Transducer Installation Options
If you would like more info on installing a transducer to your kayak, please refer to our Fish Finder Buyers Guide
In-Hull Installation
Sikaflex EBT+ Clear - Transducer Adhesive
A strong and flexible waterproof adhesive. Ideal for glueing a fish finder transducer to the hull of a kayak. Also useful as a sealent when installing other accessories. Supplied as a 300ml cartridge tube.
Price £11.95
Scanstrut Deck Seal - Cable Gland - Upto 21mm
A Cable Gland is the best option for routing the transducer cabling from the Fish Finder headunit down in through the kayak hull. This is the correct sized cable gland for the Garmin Transducer Cabling. It can also be used for routing the battery cables inside the hull.
Price £25.80
Arm-Mounted Installation
RAM Transducer Arm with Diamond Base
Compatible with both Lowrance and Humminbird Transducers, this arm allows you to hang your transducer directly over the side of your kayak and into the water. This makes for a quick release mounting system.
Price £55.99
Railblaza Transducer Arm XL - 700mm
The Transducer Arm XL is an easy way to mount your fish finder transducer. Simply bolt the transducer to the bottom of the arm and mount the arm to your kayak! NOTE: This kit requires a Sideport to mount the transducer arm. These can either be fixed straight to the hull of the kayak using the fixings supplied with the ports, or they can be mounted on slide tracks, as shown in the images above, using the appropriate TracMount Kit.
Price £39.06 (RRP £45.95 - Saving £6.89)
Fish Finder - Power Options
12v 7ah SLA - Fish Finder Battery
Ideal for powering your Fish Finder. A 12V 7aH SLA battery provides ample charge for 1-2 fishing sessions. Once the battery charge has been run down it needs to be recharged and this is best done using a 12V trickle charger.
Price £26.00
Feelfree 5 Litre Dry Tube - Battery Bag
A great option for dry storing your Fish Finder battery inside the hull of your kayak. This power cables can easily roll down with the top of the dry bag, whilst still making a dry seal.
Price £11.96 (RRP £15.95 - Saving £3.99)
Scanstrut Deck Seal - Cable Gland - Upto 16mm
A Cable Gland is the best option for routing the power cabling from your Fish Finder Headunit in through the hull and to your battery. This is the correct size for just the battery cable to pass through.
Price £22.20
If you would like more info on powering your Fish Finder, please refer to our Fish Finder Buyers Guide
Delivery
Nationwide delivery available for the Garmin Echomap UHD2 55cv. Delivery price will be shown in the shopping basket prior to checkout. For full details on delivery please see: Delivery Information
Click & Collect - Stores Nationwide
Nationwide Click & Collect available for the Garmin Echomap UHD2 55cv. Collection for orders placed online can be made from any of our Canoe Shops UK Stores. For full details on our Click & Collect service, please see: Nationwide Click & Collect
